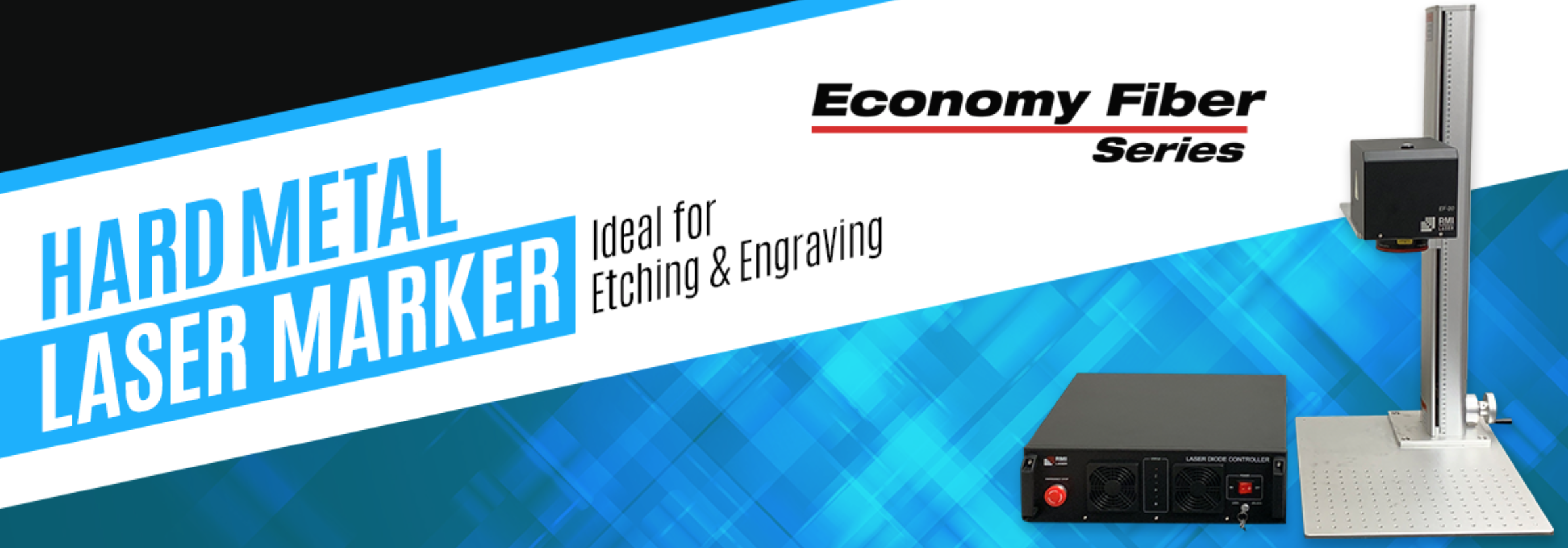

EF系列

Fiber 光纖雷射雕刻機

商品特色

商品說明
商品規格
相關推薦

Fiber Laser Marking Machine/Fibre Laser Marker Head

	EF-20	EF-30
Laser Source Built-in	Yb-doped Fiber Laser	Yb-doped Fiber Laser
Wavelength	1064 nm	1064 nm
Laser Source Output	20 W equivalent CW Power	30 W equivalent CW Power
Peak Power	1 mJ	1 mJ
Pulse width	80 ~ 140 ns @ 20 kHz	120 ns, 30 ~ 60kHz
Warranty	1 year	1 year
100mm F-Theta Lens: Beam Spot Diameter Max Marking Area	~15 µm 60 x 60 mm 2.4 x 2.4 in	~15 µm 65 x 65 mm 2.56 x 2.56 in
163mm F-Theta Lens: Beam Spot Diameter Max Marking Area	~20 µm 100 x 100 mm 3.9 x 3.9 in.	~20 µm 105 x 105 mm 4.13 x 4.13 in.
254mm F-Theta Lens: Beam Spot Diameter Max Marking Area	~30 µm 150 x 150 mm 5.9 x 5.9 in.	~30 µm 160 x 160 mm 6.3 x 6.3 in.
330 mm F-Theta Lens: Beam Spot Diameter Max Marking Area	~50 µm 200 x 200 mm 7.7 x 7.7 in.	~50 µm 200 x 200 mm 7.7 x 7.7 in.
420 mm F-Theta Lens: Beam Spot Diameter Max Marking Area	~60 µm 250 x 250 mm 10 x 10 in.	~60 µm 254 x 254 mm 10 x 10 in.
Lenses available (focal length)	100, 163, 254, 330, 420 mm	100, 163, 254, 330, 420 mm
Cooling System	Air-cooled
Operational Temp Range*	~10 - 40 ˚C (~50 – 104 ˚F)
Operational Humidity Range*	80% non-condensing
Weight	5.0 kg (11 lbs)
Dimensions LxWxH**	260 x 149 x 141 mm (10.2 x 5.9 x 5.6 in.)

* Units stated at maximum output parameters
** Allow a minimum of 5 cm (2“) of open space around the Marker Head and Controller for free air circulation. Additionally, ensure at least 10cm (4”) of open space at the rear of the Controller and Marker Head for cable attachment and maintenance access

Fiber Laser Marking Machine/ Fibre Laser Controller

Operational Temp Range*	~10 - 40˚ C (~ 50 – 104˚ F)
Operational Humidity Range*	80% non-condensing
Power Source	AC 100 - 240 V 5 A, 50/60 Hz
Weight (with set of cables)	13 kg (29 lbs)
Dimensions LxWxH**	430 x 440 x 132 mm (16.9 x 17.4 x 5.2 in.)
