XRF MOPA 系列

Fiber 光纖雷射雕刻

  • 商品特色
  • 商品說明
  • 商品規格
  • 相關推薦

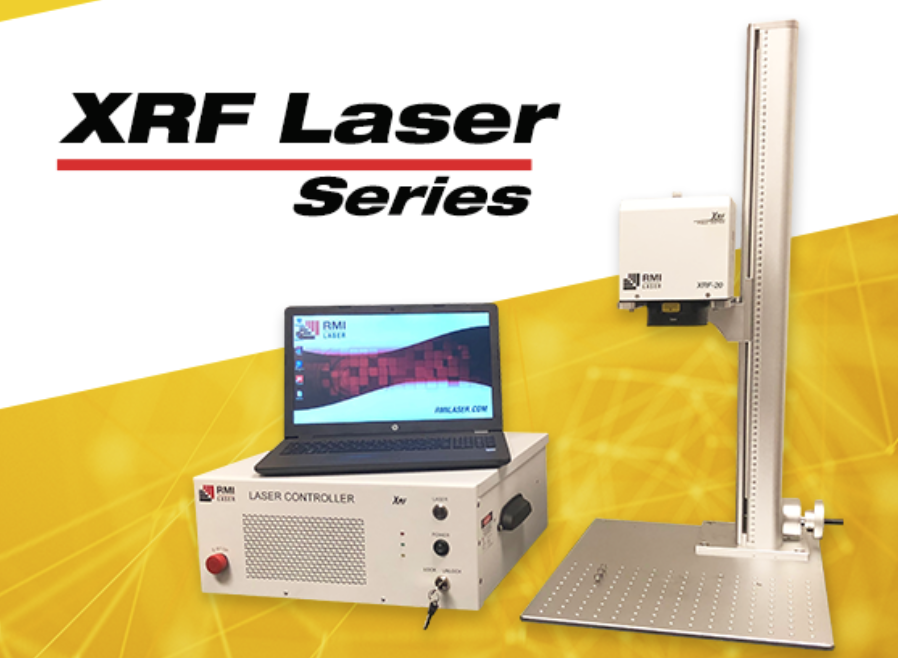

XRF Fiber Laser Marking Machine/Fibre Laser Marker Head
  XRF-20M XRF-30M XRF-60M
Wavelength 1064 nm 1064 nm 1064 nm
Laser Source Output 20 W
equivalent CW Power		 30 W
equivalent CW Power		 60 W
equivalent CW Power
Peak Power 0.8mJ 1.0 mJ 1.5 mJ
Pulse width 2~350 ns  2~350 ns  10~350 ns
Warranty 2 years fiber module
1 year all other parts
100mm F-Theta Lens:
Beam Spot Diameter
Max Marking Area		 65 x 65 mm
2.56 x 2.56 in.
163mm F-Theta Lens:
Beam Spot Diameter
Max Marking Area		 105 x 105 mm
4.13 x 4.13 in.
254mm F-Theta Lens:
Beam Spot Diameter
Max Marking Area		 160 x 160 mm
6.3 x 6.3 in.
330 mm F-Theta Lens:
Beam Spot Diameter
Max Marking Area		 210 x 210 mm
8.26 x 8.26 in.
420 mm F-Theta Lens:
Beam Spot Diameter
Max Marking Area		 265 x 265 mm
10.4 x 10.4 in.
Lenses available (focal length) 100, 163, 254, 330, 420mm
Cooling System Air-cooled
Operational Temp Range* ~10 - 40 ˚C (~50 – 104 ˚F)
Operational Humidity Range* 80% non-condensing
Weight  5.0 kg (11 lbs)
Dimensions LxWxH** 245 x 200 x 65 mm
* Units stated at maximum output parameters
** Allow a minimum of 5 cm (2“) of open space around the Marker Head and Controller for free air circulation. Additionally, ensure at least 10cm (4”) of open space at the rear of the Controller and Marker Head for cable attachment and maintenance access


Controller
Storage Temp Range -10 ~ 60 0C (14 ~ 140 0F)


Storage Humidity Range Up to 80% non-condensing


Power Source AC 100 - 240V, 5A, 50/60 Hz
Consumption Power 400W nominal,
500W max


Weight (with set of cables) 13 kg (29 lbs)
Dimensions LxWxH 430 x 440 x 132 mm (16.9 x 17.4 x 5.2 in.)
